I. Case Overview

As the temperature in the north gradually decreases, the heating season comes. Floor heating is also becoming more and more common in our lives. Today's houses are designed with pipe wells in the stairwell, and the main valve of each floor heating will be on these pipes. In order to inquire whether the households who have not paid the heating fee have stolen the valve or the valve is leaking, a timely notice is issued. The heating company needs the staff responsible for opening and closing the valve every year to go to every household to open and close the valve regularly, which consumes manpower and time. A lot of resources are wasted, and there are also great security risks.

At present, a company in Shijiazhuang mainly manages the local heating supply. Previously, the traditional management of heating valves has been using traditional methods, such as online monitoring of valve status, remote analysis of valve failures, and remote control of valve switches. It requires people to go to the site for operation, which is inefficient and has high labor costs. The customer hopes to establish a heating valve online monitoring system to monitor the valve status remotely and analyze the cause of valve failure.

As an industrial Internet of Things service provider integrating R & D and intelligent manufacturing capabilities in the Yangtze River Delta region, MANTOO has developed a collection of wireless data transmission and automatic control technology with remote relay controllers according to the company ’s needs. Data collection and automatic control functions are integrated heating remote online monitoring management system. The product helped the company solve the problem of real-time monitoring of heating valves, which enabled the company to greatly improve staff efficiency, save costs, and effectively improve management capabilities.

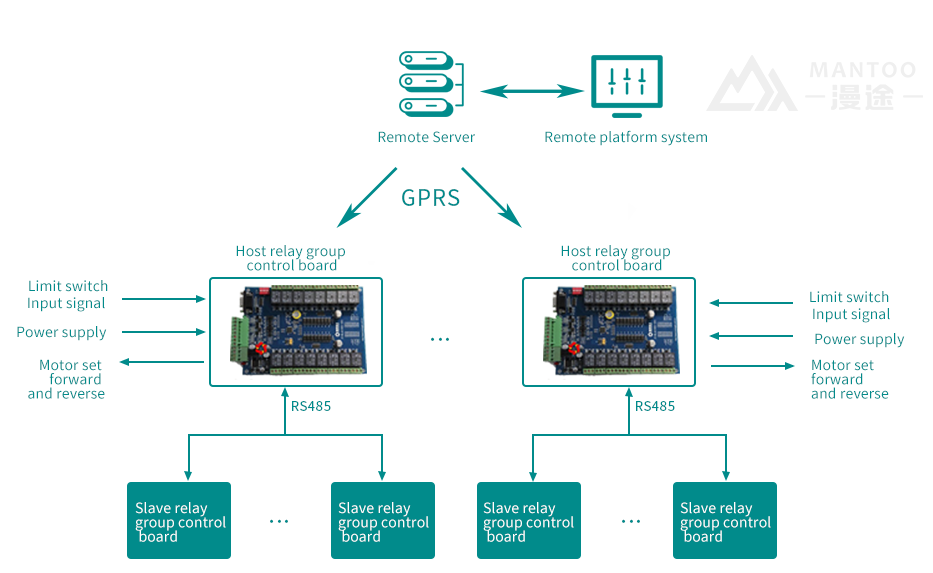

II. System architecture diagram

Ⅲ. System functions

-Real-time status monitoring: with the function of remotely checking the valve status

-Remote control: You can remotely control the opening and closing of the valve in real time

-Fault alarm: real-time alarm of valve failure, remind maintenance personnel to repair

-Remote maintenance: fault location function, you can quickly locate the fault point of the valve, and notify the relevant staff to deal with

-Emergency operation: Emergency stop can be performed during the control process to ensure safety

-Permission management: operation permission management, different personnel are assigned different permissions

Ⅳ. Software system interface

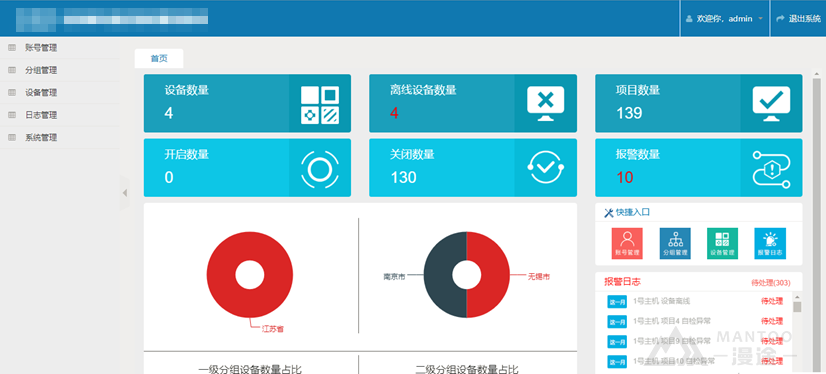

Relay control group display interface

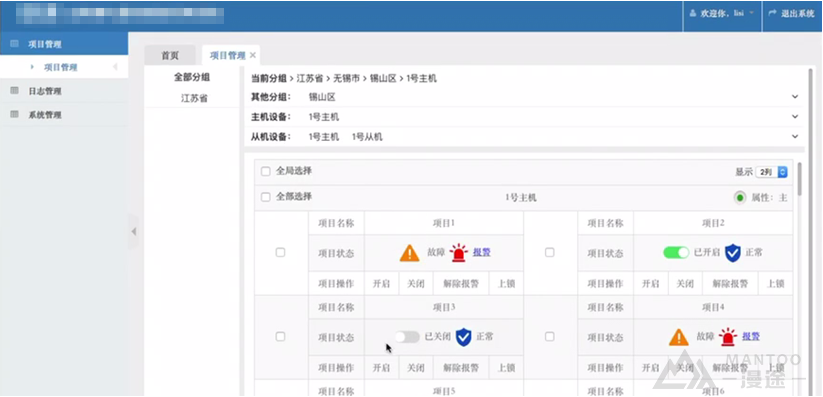

Operation interface:

Ⅴ. Introduction to hardware products

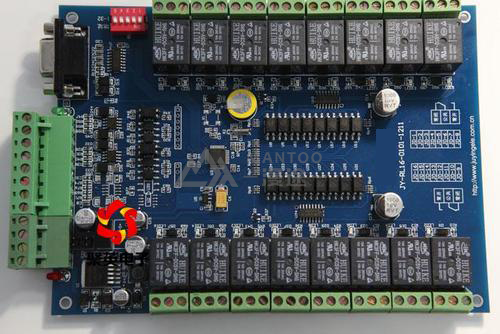

Product introduction:The remote relay controller is composed of a circuit board containing 8 sets of relays, a total of 16, controlling 8 sets of motors, 2 sets of each, a total of 16 motors, each set of relays controls the forward and reverse rotation of each set of motors, each set has 4 Normally closed limit switch, two left and right limit switches, the power of the limit switch is controllable, the signal output is 12V, the system adopts the master-slave mode, the master-slave device communication method is RS485, the master device communicates with the server through GPRS mode Remote control commands, feedback control command results, each board number is unique, set through the serial port.

Ⅵ. On-site application photos

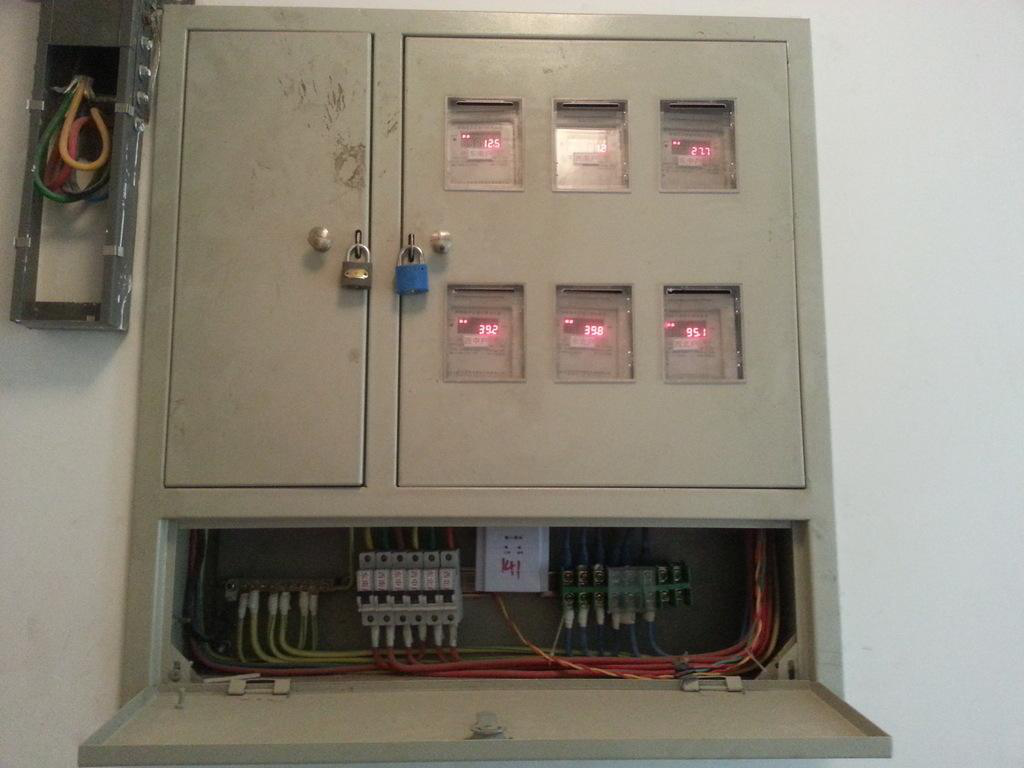

On-site electrical cabinet

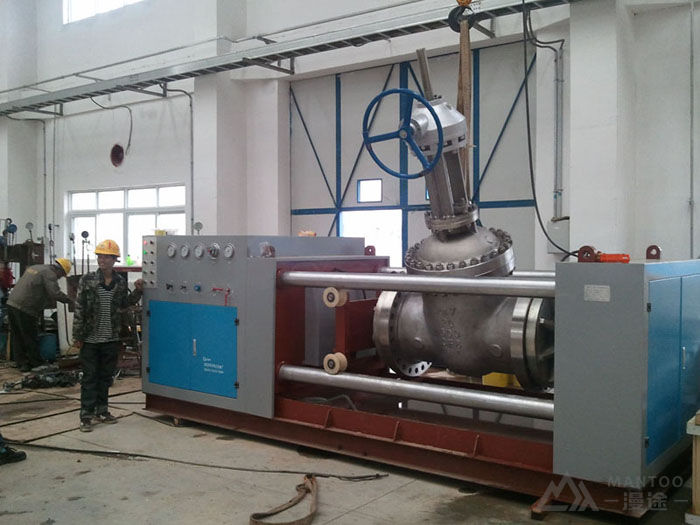

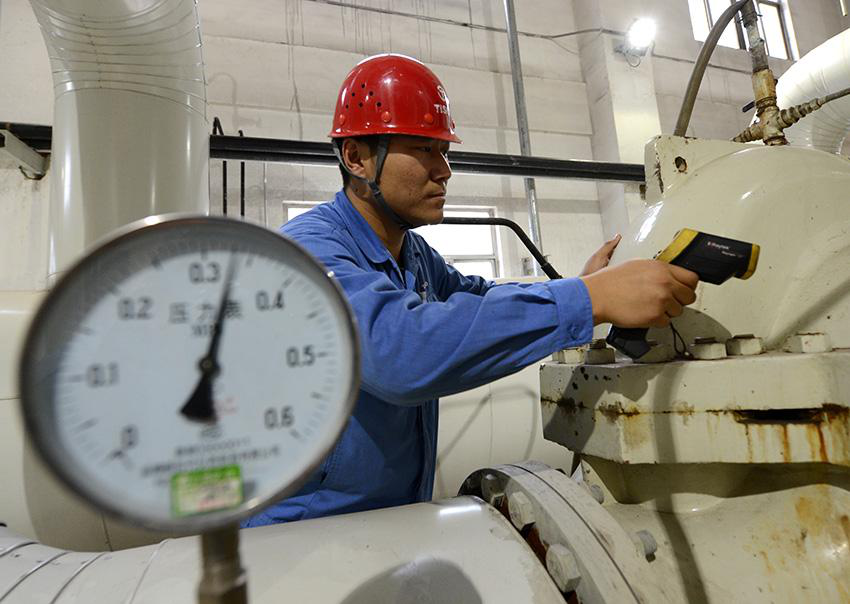

Factory piping and personnel operations

Ⅶ. Customer evaluation

After adopting the Mantu Technology heating valve online monitoring system, we realized the remote monitoring of valve status monitoring to understand specific faults in advance, which greatly improved personnel work efficiency; meanwhile, the real-time alarm function in the system greatly improved the maintenance response speed. Double upgrade of cost and service reputation.
